產品特性 :
1.外型簡潔，重量輕巧便於廣泛應用
2.使用簡便，性能好
3.經熱處理的配件、齒輪、軸使其有更高的強度
4.運行平穩，安全可靠，精心結構設計
5.材質：高強度合金鏈條和吊鉤
6.結構：經過熱處理(淬火，回火)
7.標準負荷：載荷試驗是額定載荷的1.5倍

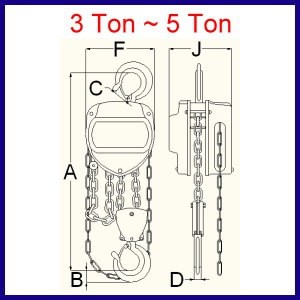

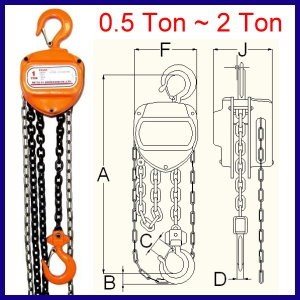

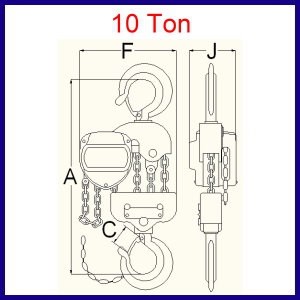

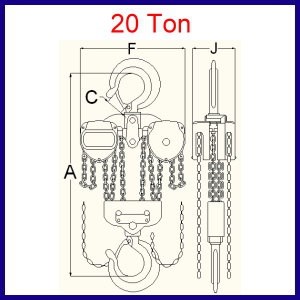

| 電腦編號 | 工作荷重 | 鏈條揚程 | 尺寸(mm) | 淨重 | 箱/台 | |||||
| Item No. | Ton | mm×M | A | B | C | D | F | J | kg | Pcs |
| CK500 | 0.5 | 6×2.5 | 320 | 18 | 15 | 14 | 150 | 126 | 9 | 4 |
| CK500-1 | 0.5 | 6×5.0 | 320 | 18 | 15 | 14 | 150 | 126 | 13 | 4 |
| CK500-2 | 0.5 | 6×7.0 | 320 | 18 | 15 | 14 | 150 | 126 | 16 | 2 |
| CK1000 | 1 | 6×2.5 | 370 | 23 | 31 | 16 | 150 | 126 | 10 | 4 |
| CK1000-1 | 1 | 6×5.0 | 370 | 23 | 31 | 16 | 150 | 126 | 14 | 2 |
| CK1000-2 | 1 | 6×7.0 | 370 | 23 | 31 | 16 | 150 | 126 | 17 | 2 |
| CK1500 | 1.5 | 8×2.5 | 430 | 27 | 38 | 21 | 184 | 147 | 15 | 2 |
| CK1500-1 | 1.5 | 8×5.0 | 430 | 27 | 38 | 21 | 184 | 147 | 20 | 2 |
| CK1500-2 | 1.5 | 8×7.0 | 430 | 27 | 38 | 21 | 184 | 147 | 24 | 1 |
| CK2000 | 2 | 8×3.0 | 430 | 28 | 39 | 21 | 184 | 147 | 16 | 2 |
| CK2000-1 | 2 | 8×5.0 | 430 | 28 | 39 | 21 | 184 | 147 | 21 | 1 |
| CK2000-2 | 2 | 8×7.0 | 430 | 28 | 39 | 21 | 184 | 147 | 25 | 1 |
| CK3000 | 3 | 8×3.0 | 480 | 37 | 34 | 14 | 186 | 145 | 21 | 1 |
| CK3000-1 | 3 | 8×5.0 | 480 | 37 | 34 | 14 | 186 | 145 | 29 | 1 |
| CK3000-2 | 3 | 8×7.0 | 480 | 37 | 34 | 14 | 186 | 145 | 37 | 1 |
| CK5000 | 5 | 10×3.0 | 640 | 46 | 45 | 15 | 215 | 164 | 39 | 1 |
| CK5000-1 | 5 | 10×5.0 | 640 | 46 | 45 | 15 | 215 | 164 | 47 | 1 |
| CK5000-2 | 5 | 10×7.0 | 640 | 46 | 45 | 15 | 215 | 164 | 55 | 1 |
| CK10000 | 10 | 10×3 | 700 | - | 62 | - | 360 | 163 | 68 | 1 |
| CK100001 | 10 | 10×5 | 700 | - | 62 | - | 360 | 163 | 88 | 1 |
| CK100002 | 10 | 10×7 | 700 | - | 62 | - | 360 | 163 | 107 | 1 |
| CK20000 | 20 | 10×5 | 1000 | - | 80 | - | 585 | 191 | 194 | 1 |
| CK200001 | 20 | 10×7 | 1000 | - | 80 | - | 585 | 191 | 233 | 1 |
