Feature :
1.All Steel Construction-Impact resistant covers that provide durability and protection.
2.Double pawl and double guide rollers enhance performance, safety and reliability. Unique curling design-This feature enables the hand chain to successfully feed directly into the wheel sprocket
3.Unique curling design-This feature enables the hand chain to successfully feed directly into the wheel sprocket from many directions and angles.
4.Grade 80 Load Chain-Grade 80 black oxide coated load chain for durability.
5.Forged alloy Steel Hooks-Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety.
6.Sealed roller bearings-Greatly improving performance and serve life of the product
7.Forged alloy Steel Hooks-Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety.
8.Certification-Load tested to 150% of capacity with certificate.
| MODEL | Capacity (T) |
Standard Lift(m) | Running test(T) | Effort required tolift max load(N) | No.of falls of load chain | Load chain diameter (mm) |

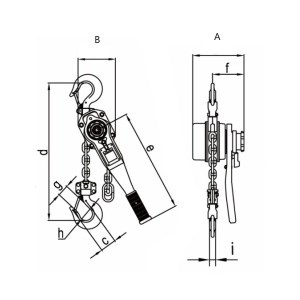

Dimension(mm) | Net weught (kg) |
Packing (L*W*H) (cm) |
|||
| A | B | C | H | |||||||||
| VD-0.5T | 0.5 | 2.5 | 0.75 | 240 | 1 | 5 | 132 | 148 | 28 | 345 | 11 | 24*19*18 |
| VD-1T | 1 | 2.5 | 1.5 | 250 | 1 | 6 | 151 | 172 | 32 | 376 | 12.5 | 28*21*21 |
| VD-1.5T | 1.5 | 2.5 | 2.25 | 265 | 1 | 7.1 | 173 | 196 | 36 | 442 | 17.8 | 34*26*20 |
| VD-2T | 2 | 3 | 3 | 335 | 1 | 8 | 175 | 210 | 36 | 470 | 19.5 | 34*26*20 |
| VD-3T | 3 | 3 | 4.5 | 363 | 1 | 10 | 176 | 230 | 46 | 565 | 29 | 34*26*20 |
| VD-5T | 5 | 3 | 7.5 | 360 | 2 | 9 | 189 | 280 | 46 | 688 | 41.3 | 41*32*24 |
| VD-10T | 10 | 3 | 15 | 380 | 4 | 9 | 189 | 463 | 57 | 765 | 78.5 | 48*42*18.5 |
